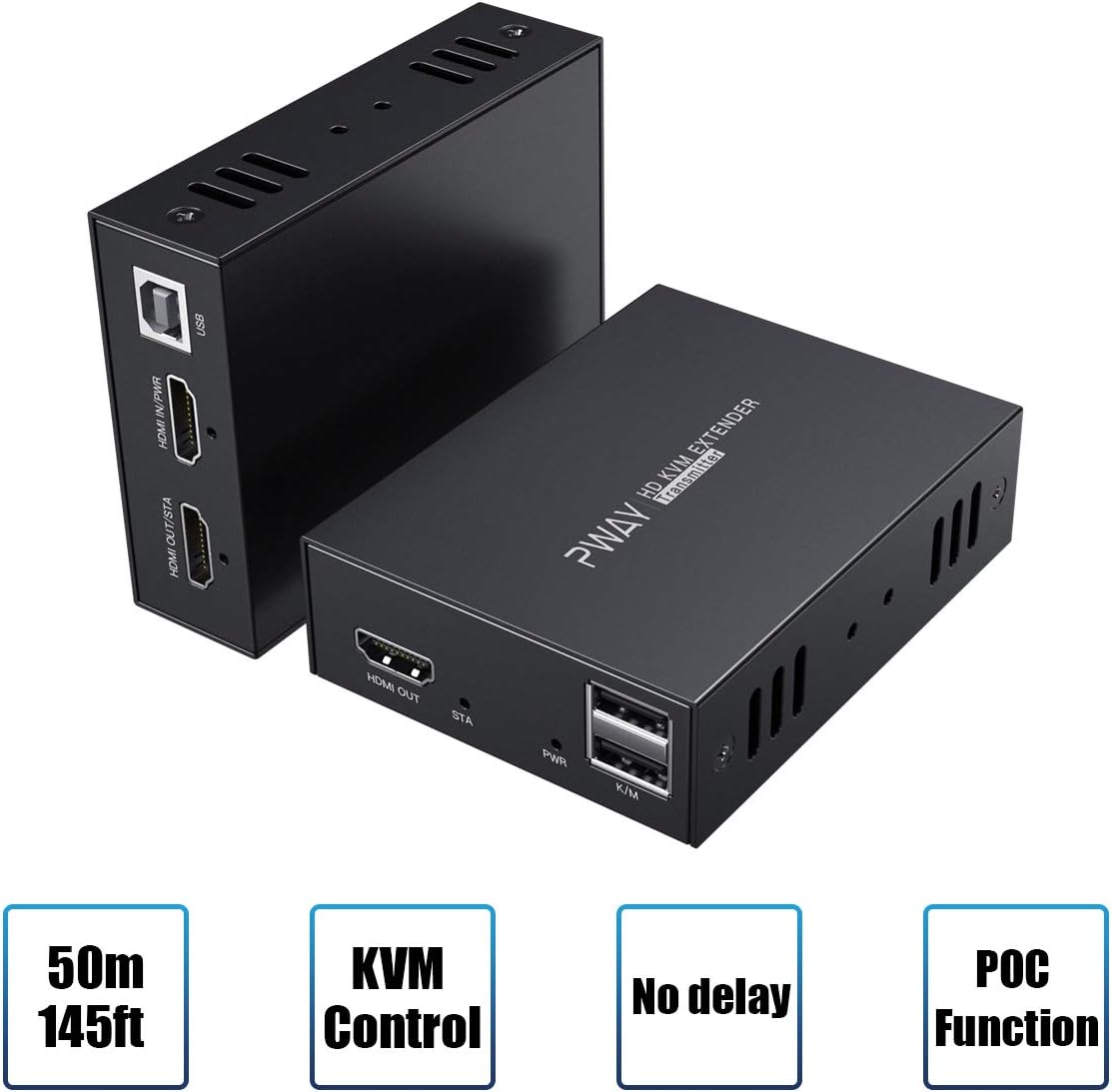

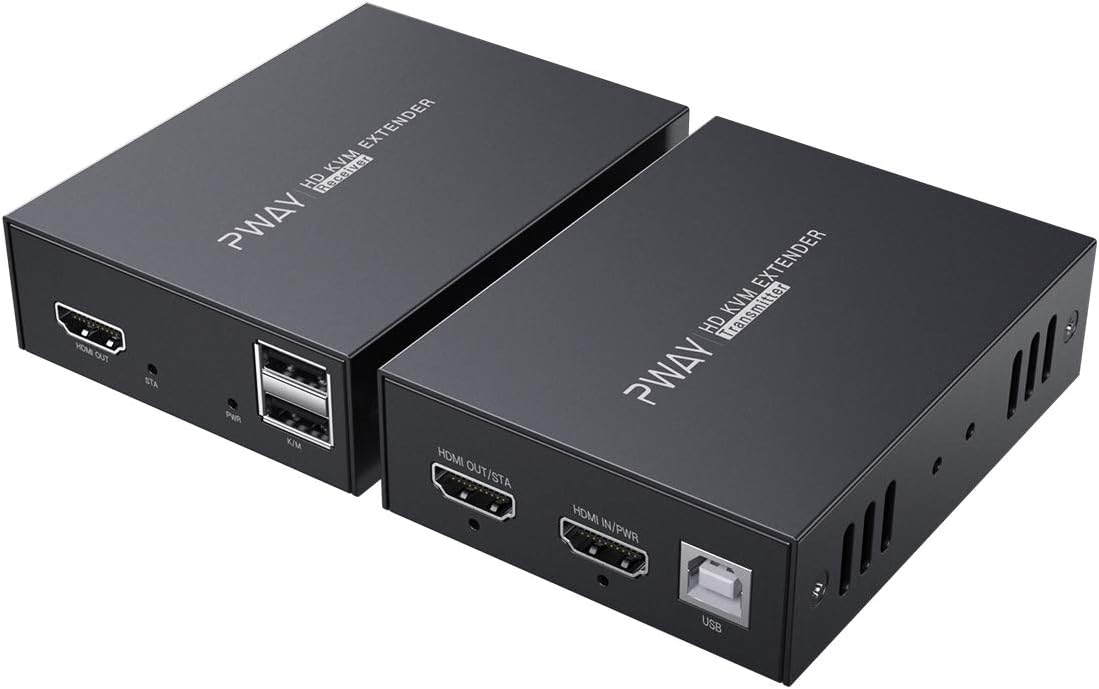

HDMI KVM USB Extender Over Ethernet Cat5e/6 Up to 50m/164ft 1080P 3D J559
HDMI KVM USB Extender Over Ethernet Cat5e/6 Up to 50m/164ft 1080P 3D J559
【HD Resolution】The device supports a resolution of 1920*1080@60Hz and is compatible with 1080i/720P/720i/480P/480i.
【POC Function】This device supports POC power supply, only need to connect the power at the receiving end to make the whole set of equipment work.

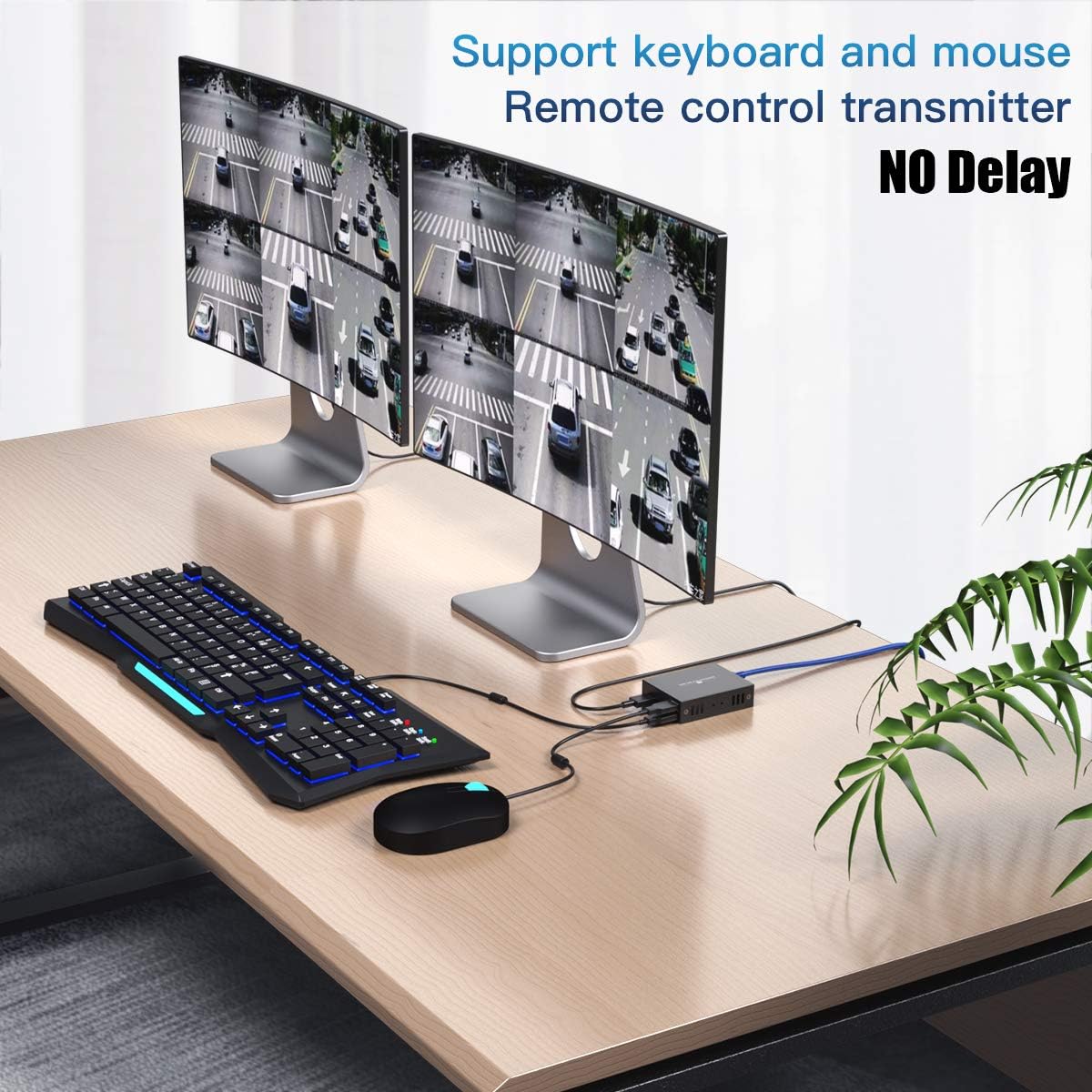

【KVM Function】Support keyboard and mouse remote control signal source, and keyboard and mouse signal without delay.
【Local output】 The transmitter has a local output, which can be directly connected to the display, which is more convenient for monitoring the status of the remote display.
HDMI Extender with KVM USB
Specifications:
HDMI Version: HDMI 1.3
HDCP Version: HDCP 1.2
USB Version: USB 1.1
Resolution: Highest 1920*1080@60Hz, compatible with 3D video format

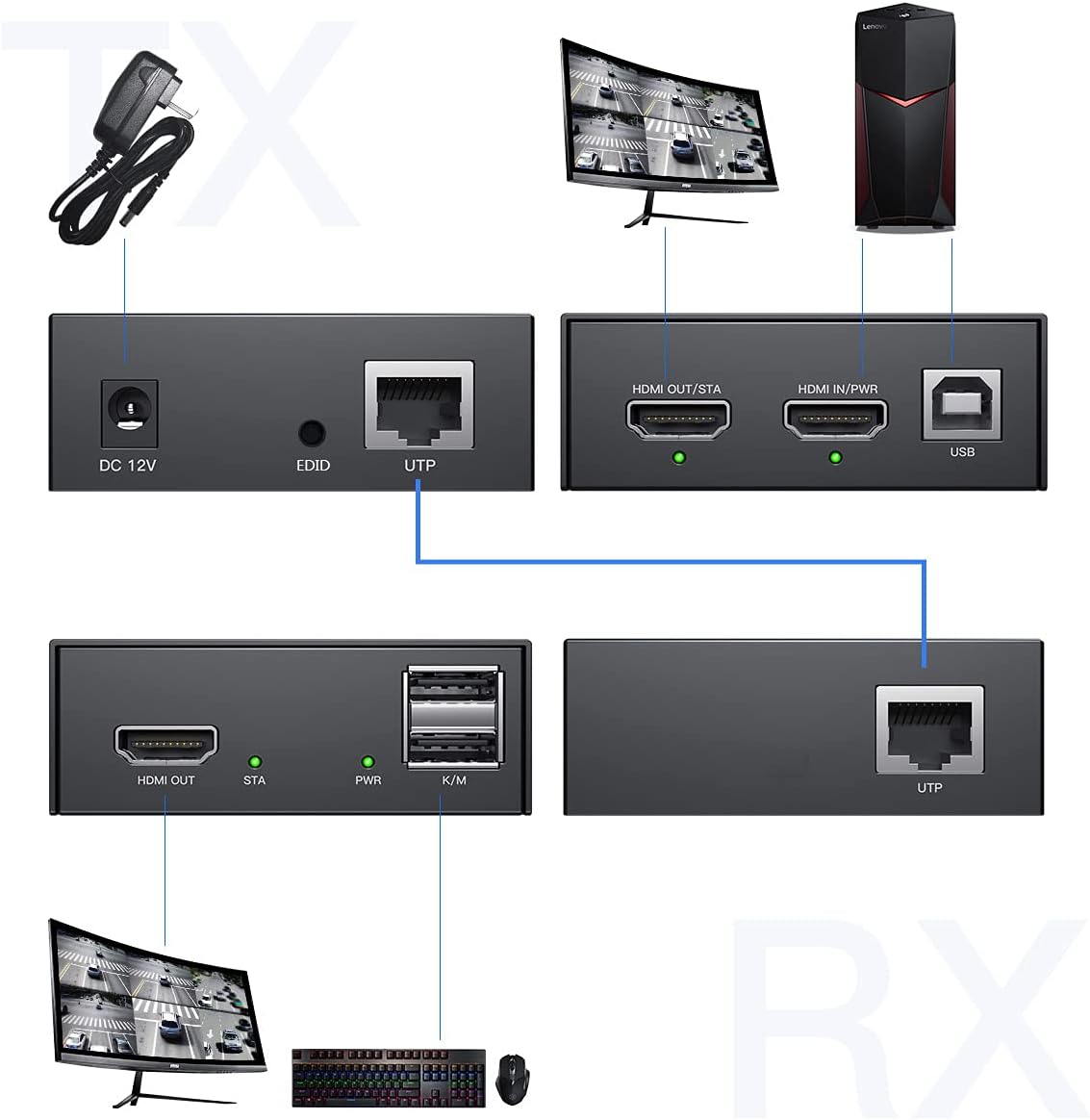

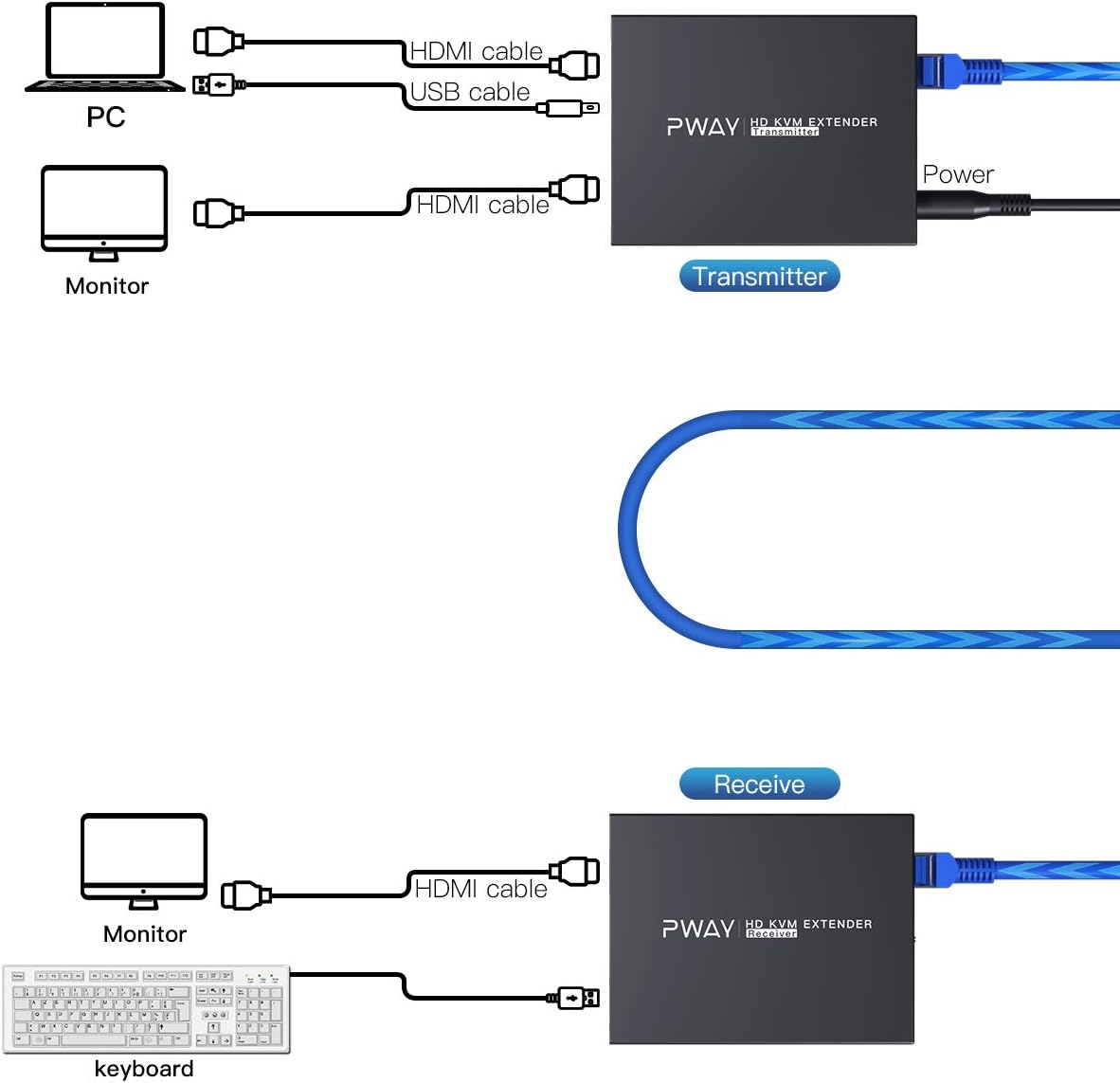

Connection instructions:
HDMI cable: HDMI 1.3 (at 1080P@60Hz), Recommended within 10ft.
Ethernet cable: Cat6/7 within 50m/165ft, Cat5e within 40m/130ft, Cat5 within 30m/100ft.
Ethernet cable RJ45 wiring sequence: T568B (white orange, orange, white green, blue, white blue, green, white brown, brown)
Remind:
1）Directly connect your signal source and monitor before connecting HDMI Extender, and check the video signal status.
2）The HDMI Extender red light means power, the green light means signal.

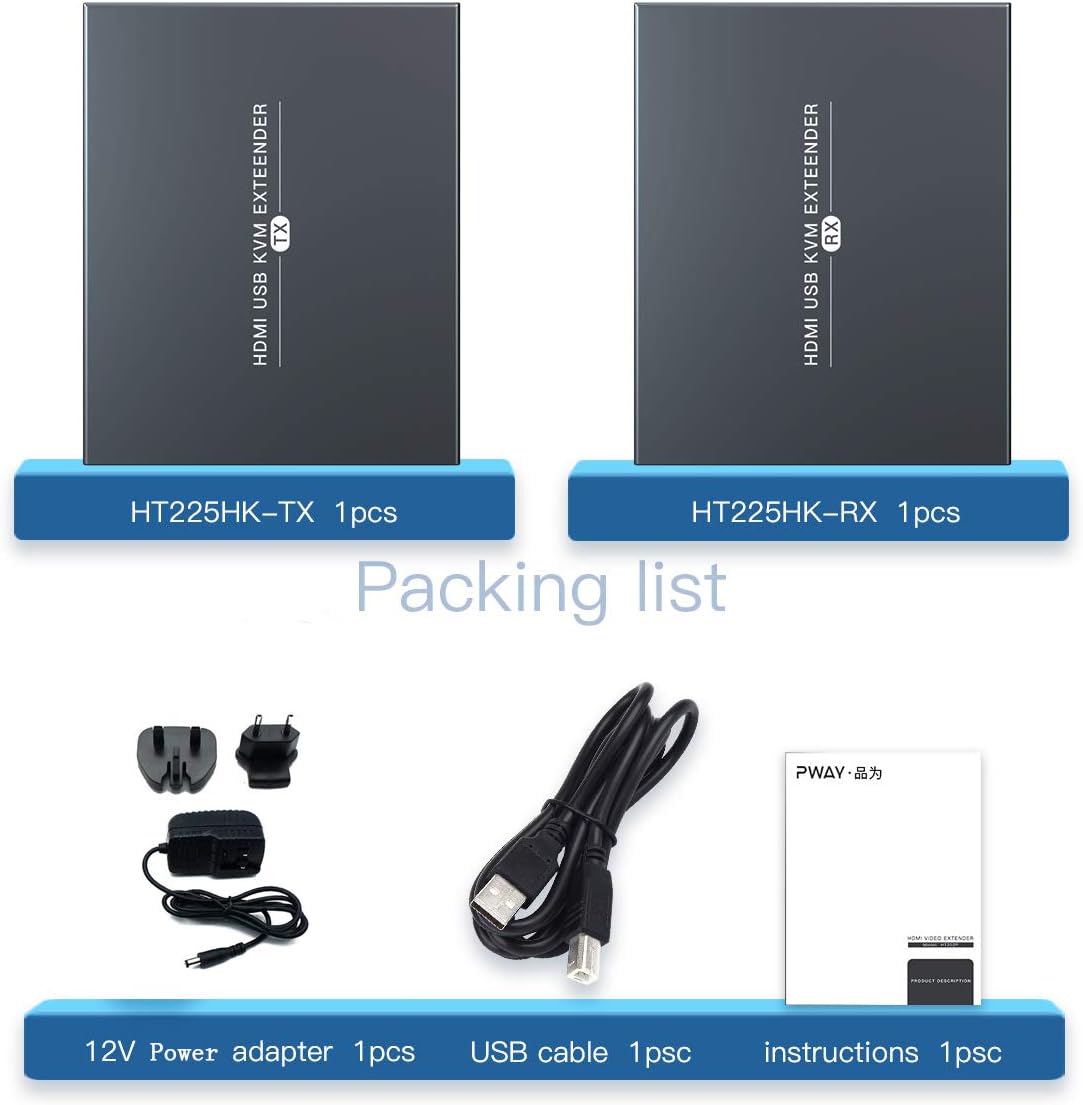

Packing list:
1x HDMI transmitter
1x HDMI receiver
1x USB-B to USB-A Cable
1x Power adapter
1x User manual
